20 Touch Points Interactive Electronic Whiteboard For Teaching 96 Inch CE

Basic Information
Place of Origin: China
Brand Name: YCLTOUCH
Certification: CE,CCC,FCC,ROHS,ISO9001
Model Number: Z096-B
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 1-20 days
Payment Terms: L/C, T/T, Western Union
Panel Size: Model Number Color: White
Function: Multifunctional Packing: Standard Packing
Touch Type: Infrared 20 Points Touch Screen Net Weight: (18±2)kg
High Light:

Interactive Electronic Whiteboard For Teaching

,

96 Inch Interactive Electronic Whiteboard

,

Teacher Interactive Whiteboard CE

96 inch infrared finger 20 touch points smart blackboard interactive whiteboard meeting teaching



Factory Direct Sales


Quality assurance
Support Custom Service



An electronic whiteboard may refer to any of the following:



1 An electronic whiteboard is a hardware device found in schools and businesses that is similar to a whiteboard. It transmits any information written it to a computer or multiple computers. They also allow live interaction with digital objects on the screen.



2 An electronic whiteboard is a software  program that runs on the computer and resembles a whiteboard. A user, such as a teacher, could draw on the electronic whiteboard in the program, and that image is distributed to multiple computers.


Product Paramenters

Appearance
Touch size
(2044.4±2.0)mm*(1229.4±2.0)mm
 Frame size
(2088±2.0)mm*(1273±2.0)mm
Projection size
(1566.6±2.0)mm*(1179.4±2.0)mm
Screen percentage
95%
 shortcut keys
Double-sided 22 shortcut keys
Overall material
Aluminum Alloy
 Panel
Extruded board
Color Craft
Silver, sandblast oxidation
Panel Proportion
4:3
Interface
Type A usb
Touch features
Support Points
Drive-free 20 points
Touch Mode
Support any non-transparent object touch, including fingers, stylus, plate eraser, etc.
  Minimum identification point
4mm*4mm
Response speed
≤10ms
Support resolution
32768x32768
Scan frame rate
≥100HZ
Support System
Support Win7, Win 8, Win10, Windows XP, Mac OS
 Touch feature
Support touch object size recognition
Sensor discontinuous damage can work normally within 10%
Machine
Package dimensions
(2280±4.0)mm*(1415±4.0)mm *(90±4.0)mm
 Net Weight
(18±2)kg
 Gross weight
(23±2)kg
Temperature
Working temperature: -10 ° C ~ 50 ° C Storage temperature: -20 ° C ~ 60 ° C
limit Humidity limit
 Work Storage humidity: 90% RH at 40 ° C without condensation
Light resistance
10000Lux
Certification
C-Tick;CE;FCC;ROHS

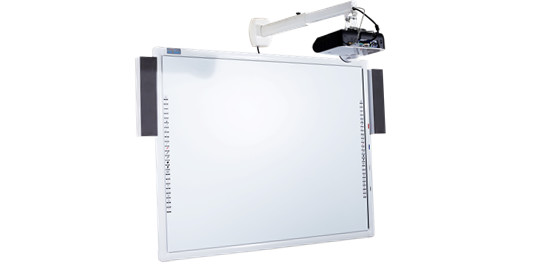

YCL interactive whiteboard is a large-size touch screen used with projectors to connect an interactive whiteboard to a computer. As a monitor and input device, users can write on the interactive whiteboard with their fingers or pen. Interactive whiteboards are commonly used in classrooms, shopping malls, government agencies, and more.

Product Description







20 Touch Points Interactive Electronic Whiteboard For Teaching 96 Inch CE 0





YCL interactive Whiteboard Features:

1) Writing smoothly and fluently ,with high precision;
2) No light spots, to protect user's eyes;
3) The board could be used also as a traditional white board using water pen for writing.
4) All kinds of board material can satisfy different requirement of customers.
5) The reverse side use zinc coating plate, to avoid whiteboard working abnormally because of electromagnetic interference
6) The main PCB is separated from the board, be convenient for after-sale to repair quickly
7) Scratches on the board surface will not affect the use of interactive whiteboard
8) One key for positioning calibration


Application scenario

20 Touch Points Interactive Electronic Whiteboard For Teaching 96 Inch CE 120 Touch Points Interactive Electronic Whiteboard For Teaching 96 Inch CE 220 Touch Points Interactive Electronic Whiteboard For Teaching 96 Inch CE 320 Touch Points Interactive Electronic Whiteboard For Teaching 96 Inch CE 4



Interactive electronic whiteboard

Enliven teaching and learning with our range of interactive whiteboard systems. Designed to focus attention and provide a platform to boost the interactivity of your lessons, ActivBoard interactive whiteboards and Promethean''s teaching software to provide the essential building blocks for any digitally connected classroom. Because each classroom is unique, Systems are available in a wide variety of configurations, enabling you to tailor the right solution to accommodate your needs.


Certifications

20 Touch Points Interactive Electronic Whiteboard For Teaching 96 Inch CE 520 Touch Points Interactive Electronic Whiteboard For Teaching 96 Inch CE 6


Company Profile




20 Touch Points Interactive Electronic Whiteboard For Teaching 96 Inch CE 7




FAQ


Q: How long is the warranty time for your company?

A:We offer 2 year warranty after the delivery.


Q:Are you the factory or the trading company?

A:we are the factory in Hangzhou city,Zhejiang province,we can OEM/ODM for you.


Q:Can I customize product as my request?

A:Absolutely yes,we can customized as your requirement.


Q:What payment method your company accept?

A:We accept most of the payment methods,but mainly by TT,other payment term is negotiable.


Q:What will you do if the products were being natural damaged within the warranty time and how about out that time?

A:Well,we will give some simple question to you or get the picture from your side to help us confirm the damaged parts,Once
confirmed,the free replacement will be sent for you.If over the warranty time,we will ask for a very low factory price for the
replacement part.
