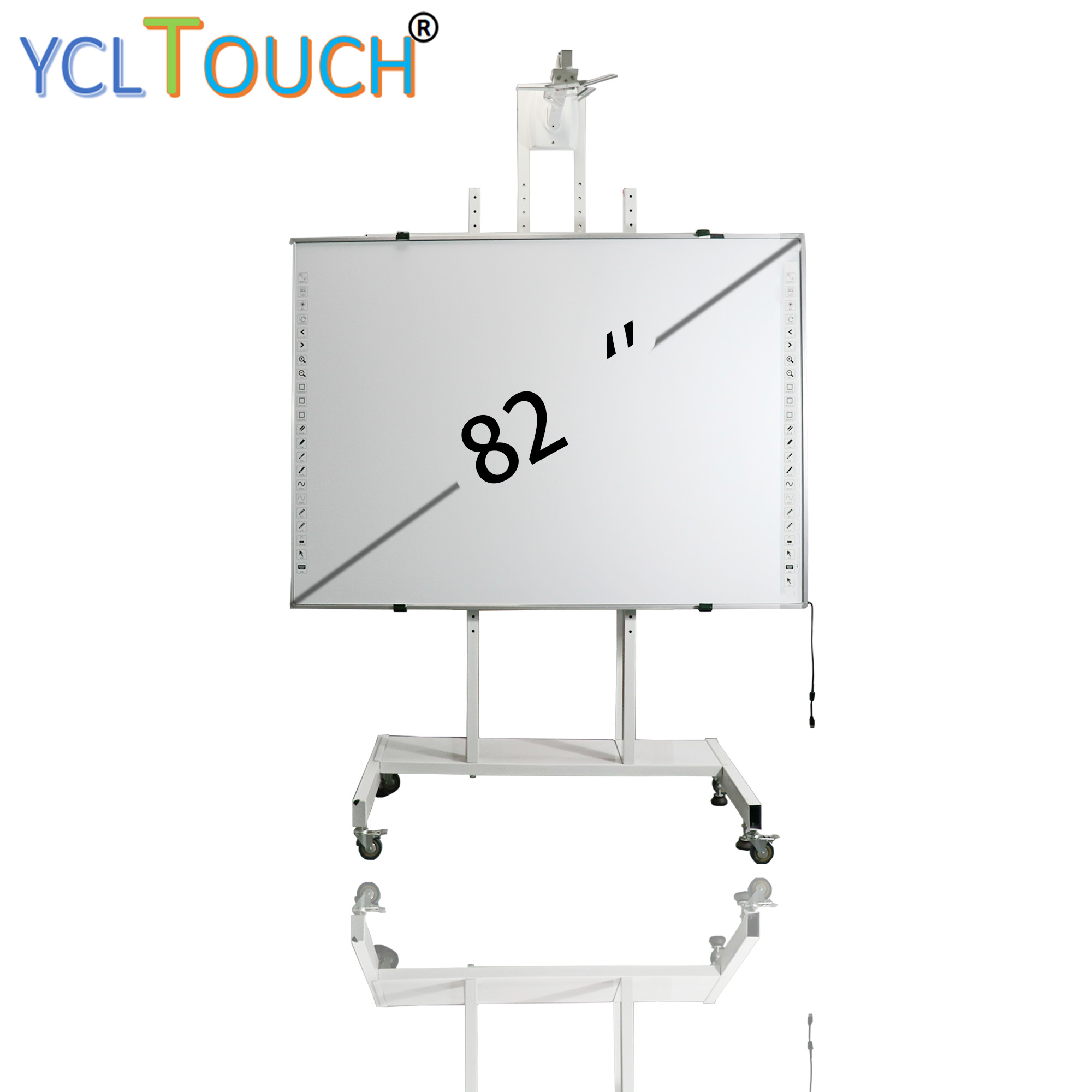

YCLTOUCH 82 Inch Smart Board Interactive Whiteboard For Teachers CCC

YCLTOUCH 82 Inch Smart Board Interactive Whiteboard For Teachers CCC
YCLTOUCH 82 Inch Smart Board Interactive Whiteboard For Teachers CCC YCLTOUCH 82 Inch Smart Board Interactive Whiteboard For Teachers CCC YCLTOUCH 82 Inch Smart Board Interactive Whiteboard For Teachers CCC YCLTOUCH 82 Inch Smart Board Interactive Whiteboard For Teachers CCC YCLTOUCH 82 Inch Smart Board Interactive Whiteboard For Teachers CCC
Basic Information
Place of Origin: Guangdong, China
Brand Name: YCLTOUCH
Certification: CE/CCC/FCC/ROHS/ISO9001
Model Number: Z082-B
Price: $145.00/Pieces 1-9 Pieces
Packaging Details: Standard packaging with foam and boxes
Supply Ability: 1000 Piece/Pieces per Day
Contact Now
Type: Whiteboard Whiteboard Type: Interactive Whiteboard
Folded: NO Size: 82 Inch
Application: Education.Training.Office Color: White
Usage: Education Smart Boards Surface: Lacquered
Operating System: Android+win7/10 Optional Touch Points: 20 Points
Touch Type: Infrared Touch 20 Points Frame: Alluminium Alloy
Port: Shenhzen
High Light:

82 Inch Smart Board Interactive Whiteboard

,

Interactive Whiteboard For Teachers CCC

,

82 Inch Interactive Whiteboard

82-inch infrared finger touch smart board interactive whiteboard multimedia teaching

Factory Direct Sales

Quality assurance
Support Custom Service

82"16:10 factory direct multi-point infrared touch electronic whiteboard for class and meeting


Model
Z082-B
Appearance
Frame size
(1693±2.0)mm*(1223±2.0)mm
Touch size
(1649.4±2.0)mm*(1179.4±2.0)mm
Projection size
(1566.6±2.0)mm*(1179.4±2.0)mm
Screen percentage
95%

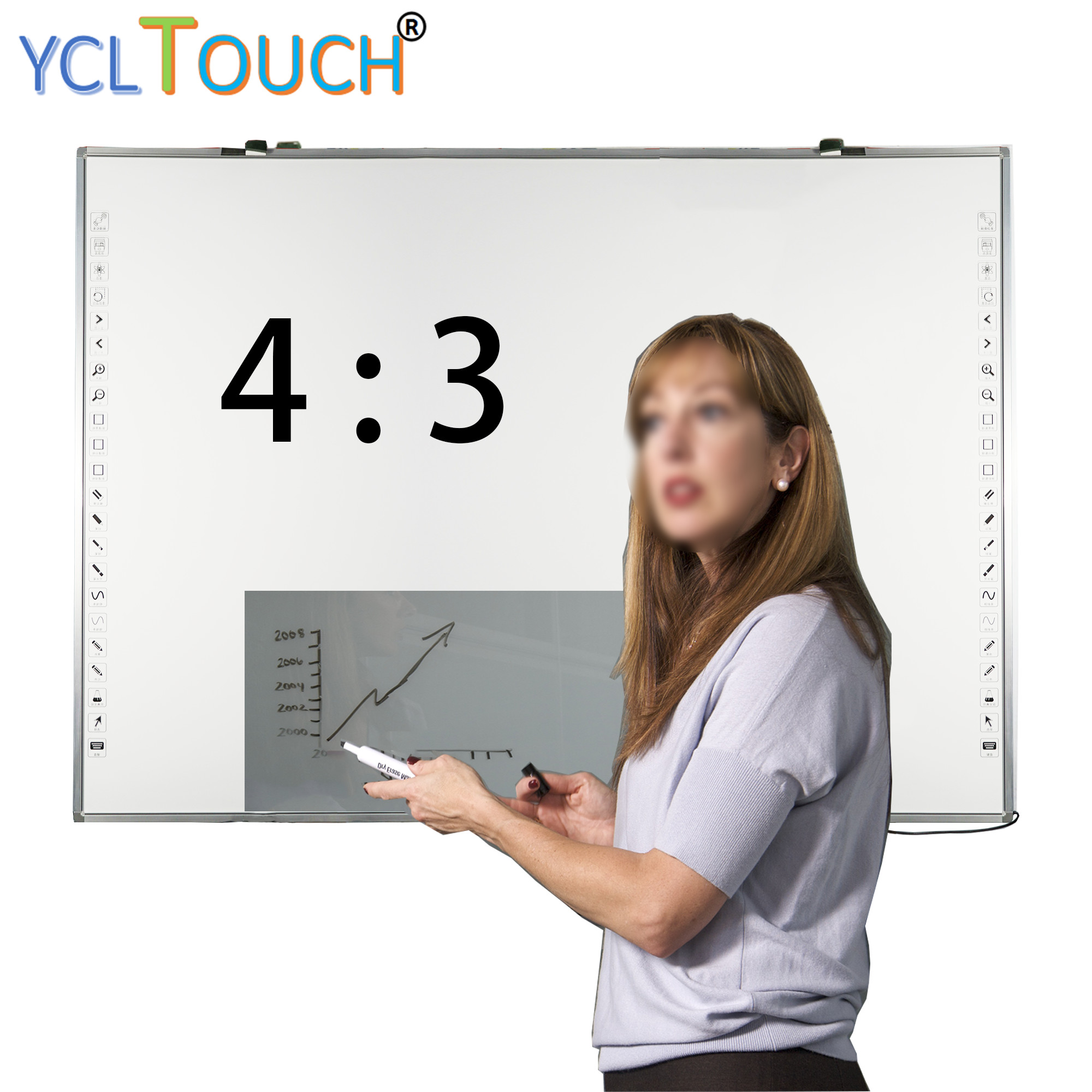

Proportion
4:3
Shortcut keys
Double-sided 22 shortcut keys
Overall material
Aluminum Alloy
Color Craft
Silver, sandblast oxidation
Panel
Extruded board
Interface
Type A usb
Touch features
Support Points
Drive-free 20 points
Touch Mode
Support any non-transparent object touch, including fingers, stylus, plate eraser, etc.
Support resolution
Drive free mode: 32768x32768
Response speed
≤10ms
Minimum identification point
4mm*4mm
Scan frame rate
≥100HZ
Touch feature
Support touch object size recognition
Sensor discontinuous damage can work normally within 10%
Support System
Support Win7, Win 8, Win10, Windows XP, Mac OS
Machine
Net Weight
(18.5±2)kg
Gross weight
(23±2)kg
Package dimensions
(1760±4.0)mm*(1285±4.0)mm *(90±4.0)mm
Humidity limit
Work Storage humidity: 90% RH at 40 ° C without condensation
Temperature limit
Working temperature: -10 ° C ~ 50 ° C Storage temperature: -20 ° C ~ 60 ° C
Light resistance
10000Lux
Certification
C-Tick;CE;FCC;ROHS


 YCL interactive whiteboard is a large-size touch screen used with projectors to connect an interactive whiteboard to a computer. As a monitor and input device, users can write on the interactive whiteboard with their fingers or pen. Interactive whiteboards are commonly used in classrooms, shopping malls, government agencies, and more.YCLTOUCH 82 Inch Smart Board Interactive Whiteboard For Teachers CCC 0

YCL interactive Whiteboard Features:

1) Writing smoothly and fluently ,with high precision;
2) No light spots, to protect user's eyes;
3) The board could be used also as a traditional white board using water pen for writing.
4) All kinds of board material can satisfy different requirement of customers.
5) The reverse side use zinc coating plate, to avoid whiteboard working abnormally because of electromagnetic interference
6) The main PCB is separated from the board, be convenient for after-sale to repair quickly
7) Scratches on the board surface will not affect the use of interactive whiteboard
8) One key for positioning calibrationYCLTOUCH 82 Inch Smart Board Interactive Whiteboard For Teachers CCC 1

YCLTOUCH 82 Inch Smart Board Interactive Whiteboard For Teachers CCC 2AccessoriesYCLTOUCH 82 Inch Smart Board Interactive Whiteboard For Teachers CCC 3YCLTOUCH 82 Inch Smart Board Interactive Whiteboard For Teachers CCC 4YCLTOUCH 82 Inch Smart Board Interactive Whiteboard For Teachers CCC 5YCLTOUCH 82 Inch Smart Board Interactive Whiteboard For Teachers CCC 6YCLTOUCH 82 Inch Smart Board Interactive Whiteboard For Teachers CCC 7YCLTOUCH 82 Inch Smart Board Interactive Whiteboard For Teachers CCC 8YCLTOUCH 82 Inch Smart Board Interactive Whiteboard For Teachers CCC 9YCLTOUCH 82 Inch Smart Board Interactive Whiteboard For Teachers CCC 10

FAQ

Q:Are you the factory or the trading company?

A:we are the factory in Shenzhen,we can OEM/ODM for you.

Q: How long is the warranty time for your company?

A:We offer 1 year warranty after the delivery.

Q:What payment method your company accept?

A:We accept most of the payment methods,but mainly by TT/credit,other payment term is negotiable.

Q:Can I customize product as my request?

A:Absolutely yes,we can customized as your requirement.

Q:What will you do if the products were being natural damaged within the warranty time and how about out that time?

A:Well,we will give some simple question to you or get the picture from your side to help us confirm the damaged parts,Once
confirmed,the free replacement will be sent for you.If over the warranty time,we will ask for a very low cost.
