32inch infrared touch overlay frame Touch screen components parts IR touch kit frame

Factory direct sales, our advantage is that the border is thinner and narrower.

32-inch Infrared Touch Screen

Model: LV32-17mm

20.7mm width 10mm thickness frame with 3mm glass attached (Or no glass)

Infrared Touch Screen/Frame , Size from 15"-500", 1-32point touch with Dust-proof/ Vandal-proof/ Water-proof/ Anit-glare

Product Description

Quick Details
Products Status:	Stock	Screen Size:	32"
Type:	Infrared	Interface Type:	USB
Resolution:	32768x32768	Brand Name:	YCL Touch
Place of Origin:	Guangdong, China	Technology:	IR Technology
Input Method:	Any opaque object	Touch Times:	Infinite time
Function:	Zoom in and out,Light protection,durable,Click,Draw	Response time:	≤10ms
Touch points:	20 points	Warranty:	12 months
Application:	Interactive,Teaching ,Conference,Business	Operating System:	Winxp/Win7/Win8/Win10/Andriod/MacOS/Linux
Installation:	Plug and Play	4Glass:	3mm glass or no glass
ratio	16:10	Frame	Aluminium alloy with black surface treatm

Infrared touch screen Features:

1.Ultra-thin and ultra-narrow frame, aluminium alloy shell.
2.High touch accuracy and smooth writing.
3.Driver-free support for multiple operating systems.
4.Long service life, maintenance-free.
5.Toughened glass material, with high transmittance, strong stability.
6.Strong anti-jamming ability, anti-static performance of industrial ESD.
7.Response speed (less than 15 milliseconds), sensor discontinuous damage 10%, can still work.
8.No special touch tools are needed, just opaque objects.

Infrared Touch Application Scene

1.education
2.Medical industry
3.Finance
4.Exhibition
5.Industrial control
6.Man-machine interaction
7.TV
8.PC
9.And more

Congratulations you find the source of manufacturers

Factory direct sale Exclusive custom Stable supply of goods Quality assurance

Details Images

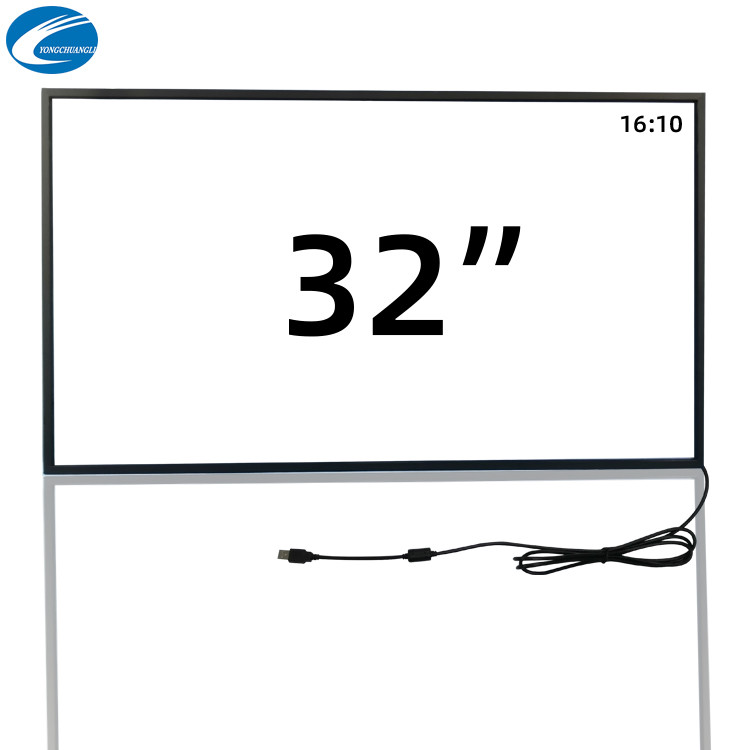

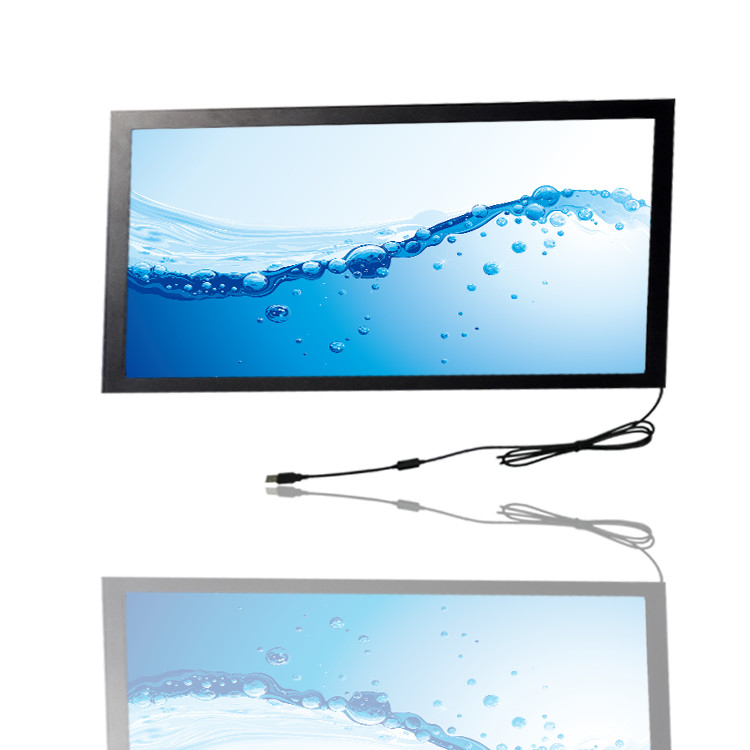

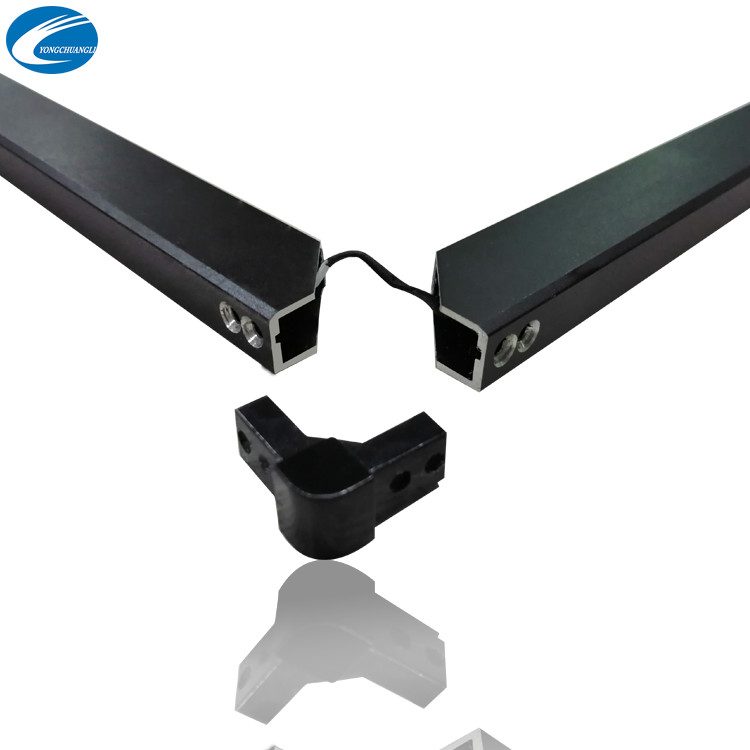

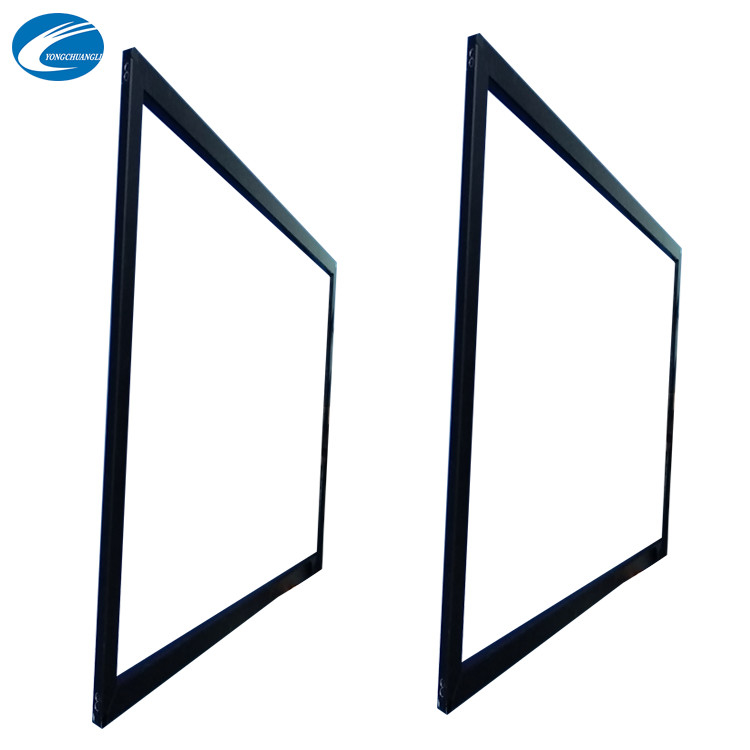

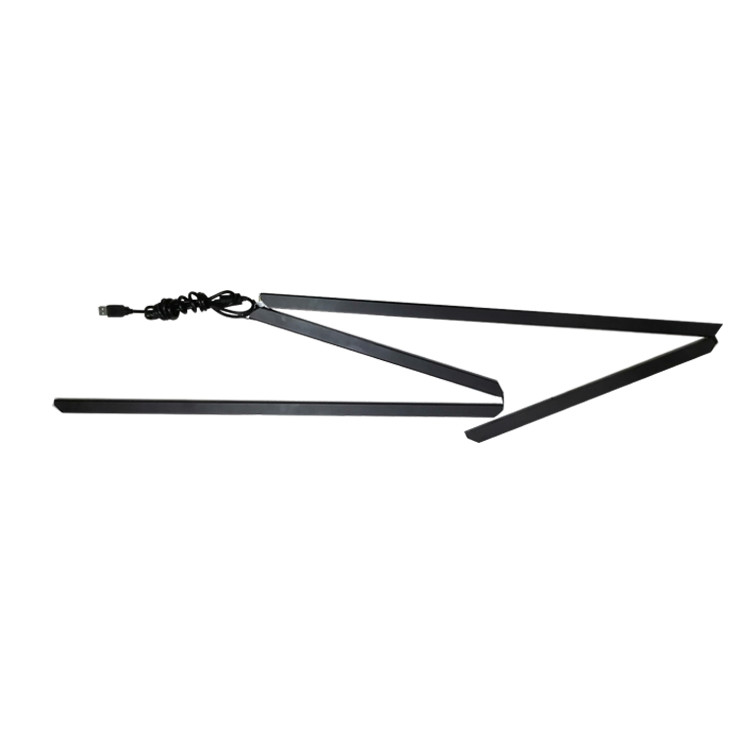

10 Points IR Touch Frame 32 Inch 10ms Touch Screen Components 0

Infrared Scene Application

10 Points IR Touch Frame 32 Inch 10ms Touch Screen Components 10

Our Company

Welcome to our company:Shenzhen Yongchuangli Electronic Technology Co., Ltd.

Shenzhen Yongchuangli Electronic Technology Co., Ltd.is a high-tech enterprise specializing in R&D, production and sales of infrared PCBA sets, touch frames, touch screens, splicing screens, interactive intelligent electronic whiteboard (projection type).Acquired nearly 10 domestic practical technology soft work, truly achieve 32 touch solution providers. The company focuses on interactive touch application, adheres to the "independent innovation technology beyond" development strategy, has a strong technical force of R&D team, and has a number of core technology solutions.

Infrared touch box, multi-touch screen and other core products have the following characteristics: high resolution, fast response, support for multi-touch operation, one-hand occlusion does not affect touch, support gesture switching dual system, the narrowest and thinnest border, drive-free support for multiple systems, suitable for Windows, Mac OS, Android, Linux operating system.

Quality products and all-round service are the basis for us to win the market. We patiently listen to every customer's suggestions and opinions, so that we continue to forge ahead, we always uphold the customer first, dedicated service!

The series of products produced by the company conform to UL, FCC, ROHS and Reach standards. The company has passed the ISO 9001:2015 international quality management system certification.

10 Points IR Touch Frame 32 Inch 10ms Touch Screen Components 12

Packing & Delivery

Packaging Detaills:Foam and carton box
Delivery Time: within 5-15 workdays after payment

10 Points IR Touch Frame 32 Inch 10ms Touch Screen Components 14

Tag:

Place of Origin:	Guangdong,China
Brand Name:	YCLTOUCH
Certification:	RoHS, ISO9001, ce, FCC, EMC, LVD

Price:	$48.10/Pieces 1-9 Pieces
Packaging Details:	Foam and carton box.
Supply Ability:	1000 Piece/Pieces per Day

Color:	Black, Black	Package:	Yes
Series:	For Business	Aspect Ratio:	16:10
After-sales Service:	Call Center And On-line Technical Support	Products Status:	New, Stock
Warranty(Year):	1-Year	Type:	Infrared, Tablet PC
Interface Type:	Usb	Material:	Aluminum
Style:	Any Platform	Product Name:	Touch Screen Panel
Size:	Customizing	Application:	ATM.POS.Open Frame Machine ...etc
Keywords:	China Tablet Touch Screen	Touch Points:	10 Points
High Light:	10 Points IR Touch Frame 32 Inch , IR Touch Frame 32 Inch 10ms , Touch Screen Components
