| Place of Origin: | Guangdong China |
|---|---|
| Brand Name: | YCLTOUCH |
| Certification: | RoHS, CCC, ISO9001, ce, FCC, EMC, LVD |
| Model Number: | YCL-F55 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Standard packaging with foam and boxes |
| Delivery Time: | 3-7 Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000/ months |
| Size: | 55 Inch | Transparency Rate: | 85% |
|---|---|---|---|
| Cover Thickness: | 0.155mm | Screen Type: | FILM |
| Touch Type: | Finger Touch | Certification: | RoHS, ISO9001, Ce, FCC, EMC, LVD |
| High Light: | Capacitive Multi Touch Foil,Multi Touch Foil 55 Inch,Interactive Capacitive Touch Film |
||

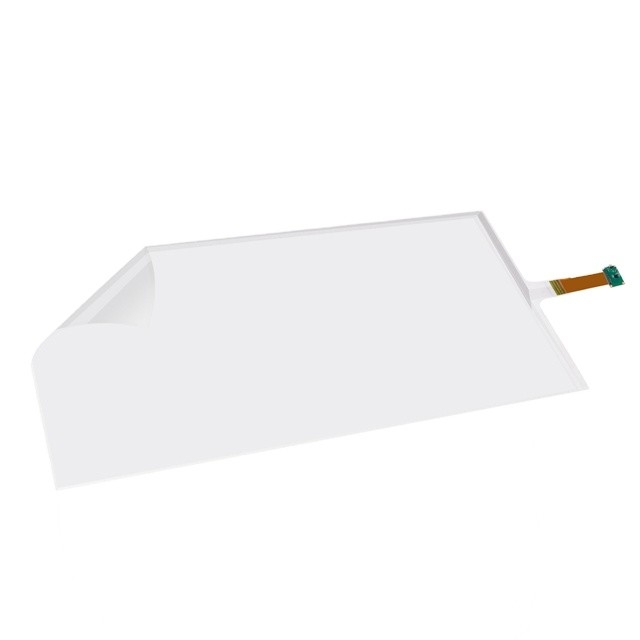

55 inch waterproof capacitive multi touch foil USB interactive projection touch
How does it work?
ChariotTech Multi-touch foil is made of two sheets of film, the mid of two sheets film is a layer of X, Y axis grid matrix layer consisting of crossing nano wires. The touch signal transfer to the drive controller, the drive controller transfer the signals to the computer through interface, then the computer could identify the location of a touch on the screen.
YCLTOUCH Multi-touch foil is an innovation core part of touch screen, support single-touch & multi-touch.
YCLTOUCH Multi-touch foil is an optically clear, large format projected capacitance film that can be applied to and works through glass and other non-metallic surfaces. This Multi-touch foil technology can transforms any glass or acrylic surface into a touch screen. It is an ideal choice for interactive window displays.
sizes, support customization
Features of interactive touch foil:
Use for:

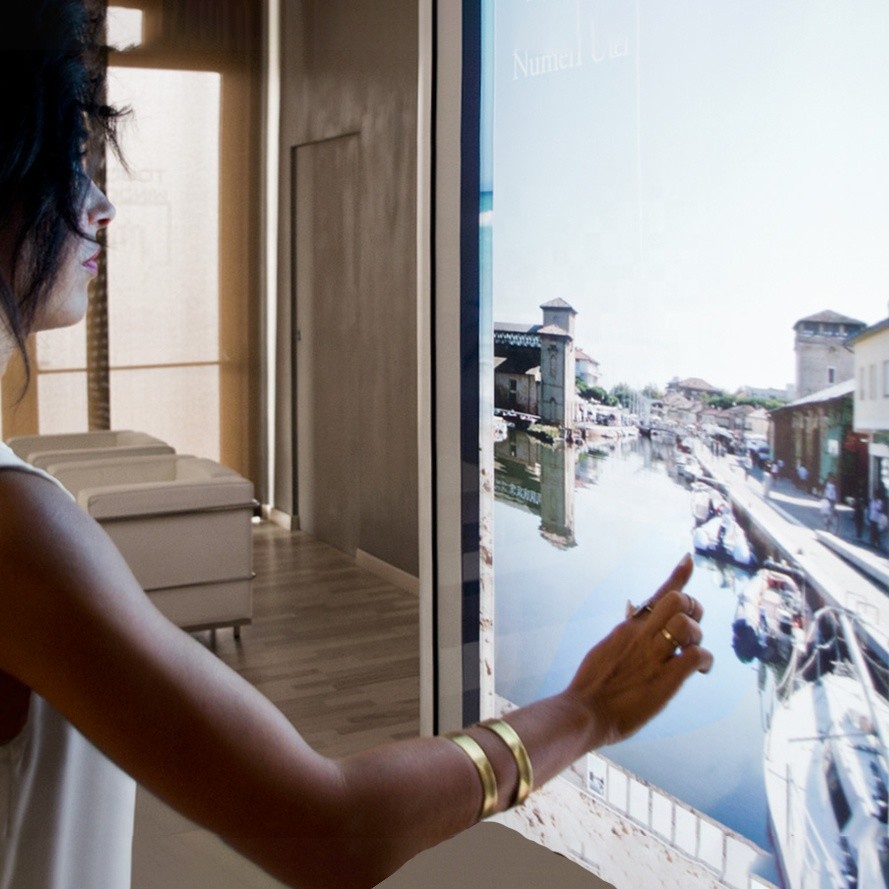

1 Shop/Store window displays
2 Indoor&outdoor kiosk
3 Offices
4 Training&meeting rooms
5 Exhibitions&conferences
6 Museums&visitor attractions
7 Interactive white board
8 Medical Instrument
9 Touch table
Features:
pressure touch, even with glove.
Mouse function with Zoom in/out and rotation.
10-20 points Multi¬touch
Precise touch & real¬time response
High transparency ≥93%, glass ¬level transparency.
Thin&light, the sensor thickness only 0.17mm
Throu¬gh glass touch, the maximum thickness of glass can reach 12mm.
20mm distance between two fingers, finger center to finger center, glass thickness 4-5mm
System:
①For Android, Open HID-USB, switch off Report Rate Description, input value of Android’s VID(Vendor ID) and PID( Product ID) into IC advanced settings;
②Linux support, pls confirm the Linux version first.
③Win XP7/8/8.1/10 Home Edition of Windows only supports single touch.Multi touch works on Windows Professional/Enterprise/Ultimate Edition
