| Place of Origin: | China |
|---|---|
| Brand Name: | YCLTOUCH |
| Certification: | RoHS, ISO9001, ce, EMC, LVD |
| Model Number: | LV-27 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Delivery Time: | 3-7Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000 |
| Size: | 27 Inch | Interface: | USB |
|---|---|---|---|
| Touch Points: | 20 Points | Package: | Yes |
| Product Name: | Infrared IR Touch Frame | Operating System: | Winxp/Win7/Win8/Win10/Andriod/MacOS/Linux |
| High Light: | USB IR Touch Screen Frame,Touch Screen Frame 27 Inch,Infrared Multi Touch Screen 20 Points |
||

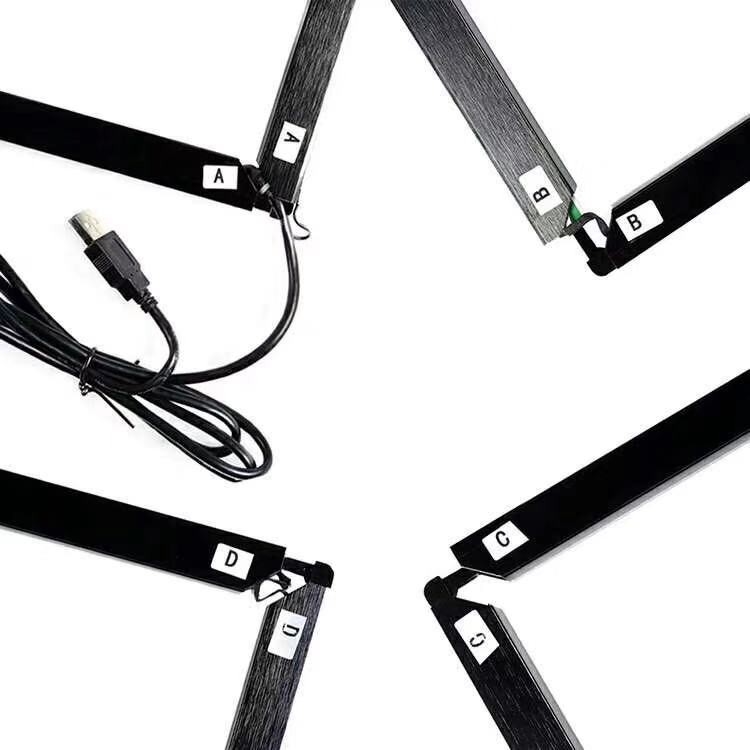

27 inch infrared multi touch screen frame usb ir touch overlay
Description for LV series infrared touch frame :

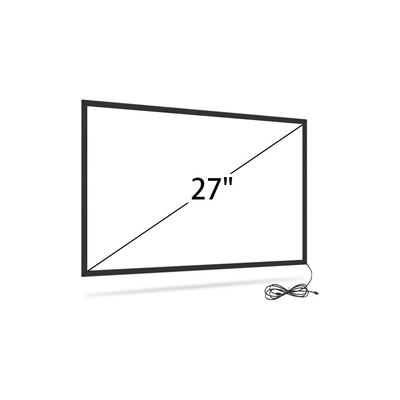

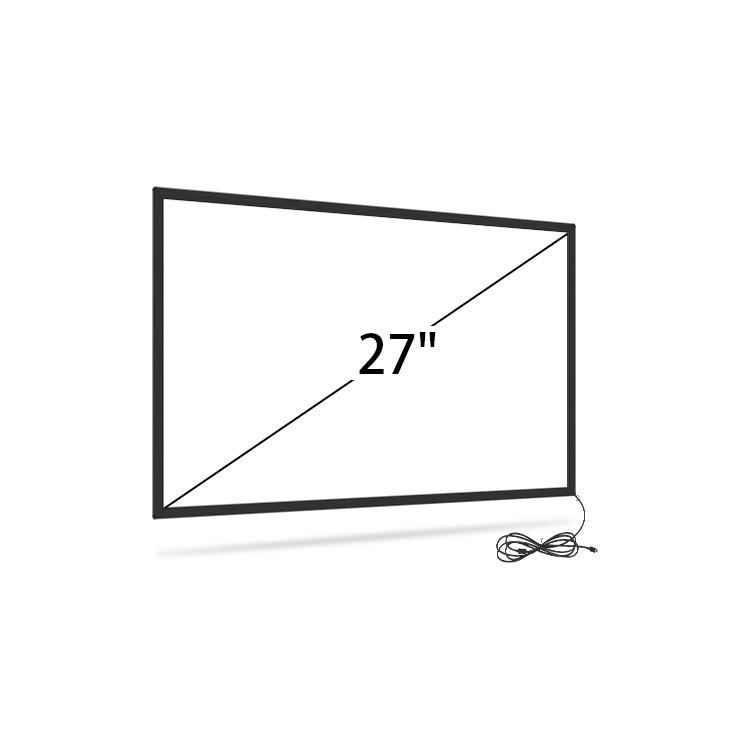

27 inch Infrared Touch Frame with 20 points
what is ir touch frame
We are presenting IR Touch Frame. It provides fully multi-touch experience by converting any screen, glass into an interactive display which allows operating the screen with your fingers instead of using a mouse. IR Touch Frame is suitable with LCD, LED or Any kind of glass and Projection displays. You just need to connect the USB cable. You can now use fingertips to play movies, browse pictures, play games and more when the frame is installed. There are two types of frames – whit glass and without glass. This is permitted for innovative applications of interactive solutions that may not have even been advised before. IR Touch Frame/Touch Frame/IR Frame/Frame/PLC Touch Frame/PLC IR Touch Frame/PLC Touch Frame.
How IR touch frame Red Works:
Infrared touch technology requires a perimeter to be placed around the infrared touch screen. The perimeter consists of infrared LEDs placed on two sides of the IR touch frame and phototransistors placed on the opposing two sides. The two sides then work in pairs; the signal from the LED transistor is read by its opposing phototransistor. When that signal is interrupted, it indicates a blocked infrared beam, which, in turn, indicates a touch point. While most infrared custom touch screen display doesn’t require a touchscreen, a glass overlay usually is recommended in order to protect the underlying display.
1 Draw smooth&accurate curves, no blind area, breakpoints, jump points, pause and other undesirable phenomena.
2 Aluminum alloy shell with strong stability, fast response(less than 10ms)
3 USB interface, Intelligent automatic calibration, drive-free and maintenance-free.
4 Without driver, supporting plug and play.
5 Draw smooth&accurate curves, no blind area, breakpoints, jump points, pause and other undesirable phenomena.
6 Light-resistant design, can be suitable for internal and external linked environment, widely used to financial telecom service,advertisement
show, industrial control, public query, self-service, E-education, and games etc.
Basic Specification
Electrical Specification
Environmental Specification
Reliability And Durability Data Sheet
FAQ
1 Are you a factory or trading company
Yes,we are a OEM factory
2 Are you accept customizatiom?
Yes,we are accept any custom size,27''--98 inch
3 what can you buy from us?
Capacitance Touch Screen,Infrared Touch Frame,Electronic Whiteboard,Infrared PCBA
4 why should you buy from us not from other suppliers?
Acquired nearly 10 domestic practical technology soft,Achieve 32-point touch,High resolution and fast response,Single-handed occlusion does not affect touch, support switching dual systems, thin border, drive-free,For Windows, Mac OS, Android, Linux.
5 what services can we provide?
Accepted Delivery Terms: CIF,EXW,CIP,FCA,DDP,Express Delivery；
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
