| Place of Origin: | China |
|---|---|
| Brand Name: | YCLTOUCH |
| Certification: | RoHS, ISO 9001:2000, ce, EMC, LVD |
| Model Number: | LV-32 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Delivery Time: | 3-7Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20000/month |
| Size: | 32 Inch | After-sales Service: | Others |
|---|---|---|---|
| Material: | Aluminum | Style: | Any Platform |
| Touch Points: | Multi Point Touch | Operating System: | XP Win7 8 Android Linux |
| High Light: | 16:9 Ratio 32 Inch Touch Screen Overlay,32 Inch Touch Screen Overlay Kit,Touch Screen Overlay Kit 7ms |
||

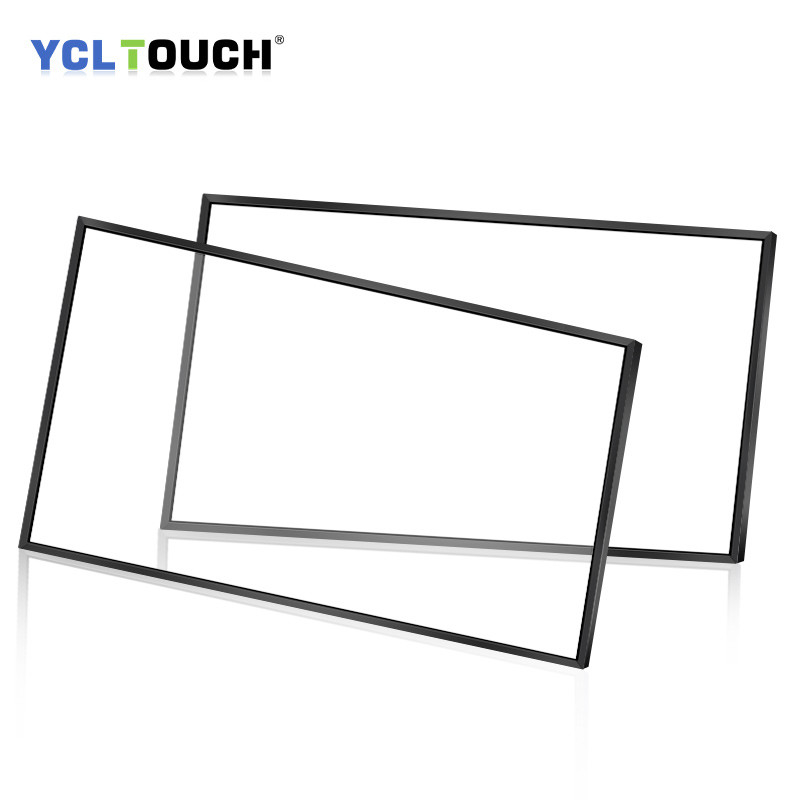

32'' 16:9 Ratio Multi-Touch IR Touch Frame , Touch Screen Overlay Kit
What is a IR Touch Screen?
YCLTouch IR Touch Frame / Screen is a high-precision IR (Infrared) Multi-touch Screen. with interpolation resolution up to
32768*32768 and can be applied in 7''-500'' display.Any nontransparent substance can be detected and located in the screen. IR
Multi-touch Screen has many advantages such as high precision, fast response, excellent glare-resistive ability and faulty
tolerance, with one time factory calibration.
overview
Specification
| Specification of Infrared Touch Screen | |
| Touch Screen Size | 32" |
| Touch Points | 20-point touch |
| Minimum Recognition Point Size | 4mm*4mm |
| Supporting resolution | 32768×32768 |
| Touch Response Time(Multi touch) | 10-15ms |
| Touch Response Time(One touch) | 7ms |
| Input method | Any opaque touches, such as fingers, brushes, etc. |
| Calibration | 4-point calibration |
| Number of clicks | nfinite times |
| Touch pressure | No pressure requirement |
| Line length | 1.5m |
| Interface type | 1.5 m USB cable receptacle, the receptacle 5P |
| Frame Material | Aluminium alloy |
| Glass Material | Toughened glass |
| Characteristic | Easy installation, strong compatibility |
| Scanning frequency | >110Hz |
| communication interface | USB 2.0 |
| Power supply mode | USB 5.0V |
| Working Voltage and Current | 4.75~5.25V , ≤200mA |
| Humidity | Up to 90% RH from 0°C to +40°C, non-condensing |
| Temperature Range | Working temperature:-10℃~50℃,Storage temperature:-20℃~60℃ |
| LED Lifetime | 60000hours |
| Fault-tolerant | Able to work if less than10% non-consecutive sensors are damaged |
| ESD | EN 6100-4-2 2008:3 level.4KV contact discharge and8KV air discharge |
| Anti-light Interference | Excellent |
| Firmware Upgrade | USB Upgrade: Windows 8,Windows 7 |
| Support OS(Multi touch) | Windows10,Windows8,Windows7,Andriod |
| Support OS (One touch) | WindowsXP,MacOS.Linux |
Advantages of our Infrared IR Touch Frame:
High Reliablity IR Touch Frames Series

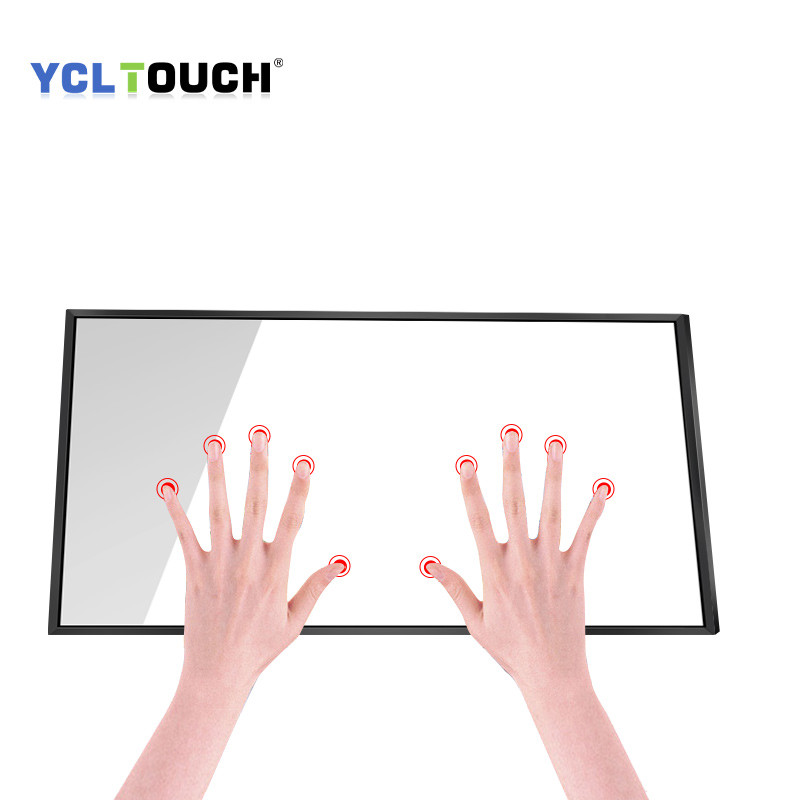

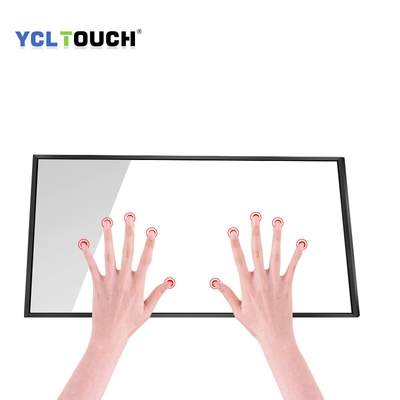

Multi-touch 20 points
High Compatibility of hardware & Software
Support Operation System Xp/Win7/Win8/Win10/Linux/Android
Perfect Anti-Sun IR Touch Screen Series
Reliability And Durability Data Sheet
| High Temperature Stock: | 100℃ for 20 hours,normal temperature for 2 hours | ||
| Low Temperature Stock: | -40℃ for 20 hours,normal temperature for 2 hours | ||
| USB Plug In And Out Test: | More than 2000 times | ||
| High/Low Circle Working: | 80℃ for 48 hours,-10℃ for 12 hours | ||
| High Humidity Working: | 80℃ for 20 hours with 85% | ||
Advantages of our Infrared IR Touch Frame:
High Reliablity IR Touch Frames Series
Multi-touch 20 points
High Compatibility of hardware & Software
Support Operation System Xp/Win7/Win8/Win10/Linux/Android
Perfect Anti-Sun IR Touch Screen Series
Shenzhen Yongchuangli Electronic Technology Co., Ltd.is a high-tech enterprise specializing in R&D, production and sales of infrared PCBA sets, touch frames, touch screens, splicing screens, interactive intelligent electronic whiteboard (projection type).Acquired nearly 10 domestic practical technology soft work, truly achieve 32 touch solution providers. The company focuses on interactive touch application, adheres to the "independent innovation technology beyond" development strategy, has a strong technical force of R&D team, and has a number of core technology solutions.
Infrared touch box, multi-touch screen and other core products have the following characteristics: high resolution, fast response, support for multi-touch operation, one-hand occlusion does not affect touch, support gesture switching dual system, the narrowest and thinnest border, drive-free support for multiple systems, suitable for Windows, Mac OS, Android, Linux operating system.
Quality products and all-round service are the basis for us to win the market. We patiently listen to every customer's suggestions and opinions, so that we continue to forge ahead, we always uphold the customer first, dedicated service!
The series of products produced by the company conform to UL, FCC, ROHS and Reach standards. The company has passed the ISO 9001:2015 international quality management system certification.
Product Application
Packing and Delivery
FAQ
1 who are we?
We are based in Guangdong, China, start from 2013,sell to Domestic Market(00.00%),Southeast Asia(00.00%),South Asia(00.00%),Mid East(00.00%),North America(00.00%). There are total about 101-200 people in our office.
2 how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3 what can you buy from us?
Capacitance Touch Screen,Infrared Touch Frame,Electronic Whiteboard,Infrared PCBA
4 why should you buy from us not from other suppliers?
Acquired nearly 10 domestic practical technology soft,Achieve 32-point touch,High resolution and fast response,Single-handed occlusion does not affect touch, support switching dual systems, thin border, drive-free,For Windows, Mac OS, Android, Linux.
5 what services can we provide?
Accepted Delivery Terms: FOB,DDP；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
