Black IR Touch Screen Panel 10 Points 15.6 Inch With Toughened Glass

Basic Information
Place of Origin: China
Brand Name: YCLTOUCH
Certification: RoHS, ISO9001, ce, EMC, LVD
Model Number: XT-15.6
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 3-7Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000/ months
Size: 15.6 Inch Brand Name: YCLTOUCH
Products Status: New Place Of Origin: China
Series: For Business After-sales Service: Call Center And On-line Technical Support, Onsite Training And Inspection, Free Spare Parts
Color: Black Other Name: IR Touch Frame
High Light:

IR Touch Screen 10 Points

,

IR Touch Screen 15.6 Inch

,

15.6 Inch Touch Screen Panel

10 Points 15.6 Inch Ir Touch Frame Infrared Multi Touch Screen Panel, Ir Touch Screen



infrared touch screen 15.6 inch multi ir touch frame,ir touch panel overlays with 10 points

Description for XT series infrared touch frame :



15.6 inch Infrared Touch Frame with 10 points

Model:XT-15.6

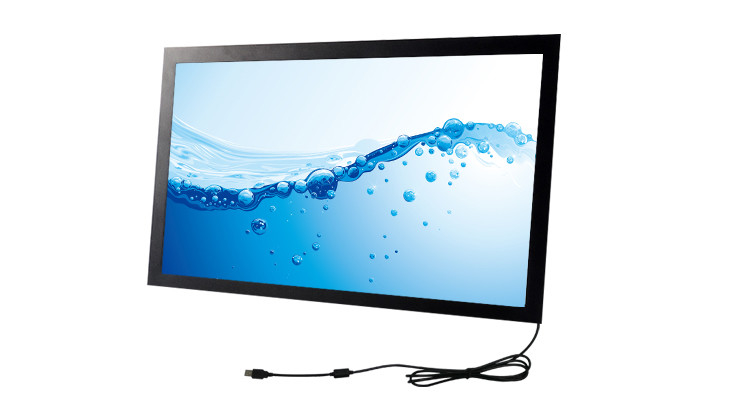

Black IR Touch Screen Panel 10 Points 15.6 Inch With Toughened Glass 0

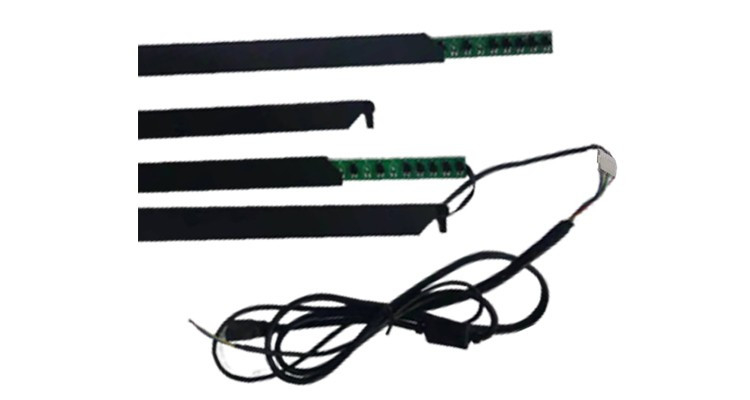

Black IR Touch Screen Panel 10 Points 15.6 Inch With Toughened Glass 1Black IR Touch Screen Panel 10 Points 15.6 Inch With Toughened Glass 2
Black IR Touch Screen Panel 10 Points 15.6 Inch With Toughened Glass 3

Product Description
Touch Screen Size
15.6"
Supporting resolution
432768×32768
Minimum Recognition Point Size
2.5mm
 Touch Points
10 touch points
Touch Response Time(Multi touch)
10-15ms
Touch Response Time(One touch)
8ms
Input method
Any opaque touches, such as fingers, brushes, etc.
calibration
4 or 9 points calibration
Number of clicks
Infinite times
Touch pressure
No pressure requirement
Interface type
1.5 m USB cable receptacle, the receptacle 5P
Line length
1.5m
Frame Material
Aluminium alloy
Power supply mode
USB 5.0V
 communication interface
USB 2.0
 Glass Material
 Toughened glass
 Characteristic
 Easy installation, strong compatibility
 Scanning frequency
 >110Hz
Working Voltage and Current
4.75~5.25V , ≤200mA
Humidity
Up to 90% RH from 0°C to +40°C, non-condensing
Temperature Range
Working temperature:-10℃~50℃,Storage temperature:-20℃~60℃
Anti-light Interference
Excellent
  ESD
EN 6100-4-2 2008:3 level.4KV contact discharge and

8KV air discharge
 LED Lifetime
  60000hours
  Fault-tolerant
 Able to work if less than

10% non-consecutive sensors are damaged
Firmware Upgrade
USB Upgrade: Windows 8,Windows 7
Support OS(Multi touch)
Windows10,Windows8,Windows7,Andriod
Support OS (One touch)
WindowsXP,MacOS.Linux



15.6 inch touch screen infrared ir touch frame for LCD monitor



1  Anti-light, sunshine from any angle does not affect touch control

2  True 10-point touch, touch experience is not affected by object occlusion

3  Hardware design of industrial control level, working normally at -15℃~55℃

4  Strong anti-jamming ability, anti-static performance of industrial ESD

5  Strong compatibility, drive-free support for multiple operating systems

6  Support gesture function, customize output protocol, interface and application development

7  Provide self-developed touch screen configuration software and remote assistance tools

Response fast, sensor discontinuous damage 10%, can still work

The size can be customized







Main Export Markets:

  • Western Europe
  • North America
  • Asia
  • The US
  • Central/South America
  • Eastern Europe
  • Australasia
  • Mid East/Africa





Our Company



Black IR Touch Screen Panel 10 Points 15.6 Inch With Toughened Glass 4





Key Specifications/Special Features:

15.6-inch IR touch frame/infrared touch frame/touch panel/infrared touch overlay
