Openframe Touchscreen USB Interface 40 Points For Smart Overlay Kit

Openframe Touchscreen USB Interface 40 Points For Smart Overlay Kit
Openframe Touchscreen USB Interface 40 Points For Smart Overlay Kit Openframe Touchscreen USB Interface 40 Points For Smart Overlay Kit
Basic Information
Place of Origin: China
Brand Name: YCLTOUCH
Certification: RoHS, ISO9001, ce, EMC, LVD
Model Number: LT-55-Q9
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 3-7Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000/ months
Contact Now
Size: 55 Inch Power Supply: USB 5V
Package: Yes Product Name: IR Touch Frame
Company Name: YCLTOUCH Aspect Ratio: 16:9
Operating System: Android + Win7/10 Option Keywords: Touch Screen Moitors
High Light:

Openframe Touchscreen USB Interface

,

Openframe Touchscreen 40 Points

,

Open Frame Touchscreen 40 Points

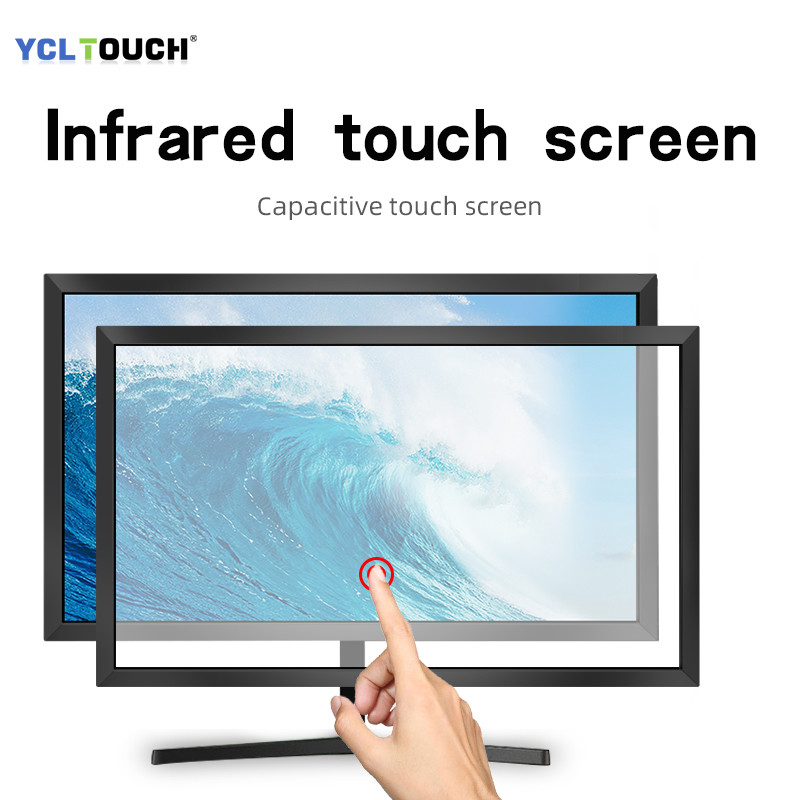

55 inch infrared touch screen open frame USB interface multi 40 points ir panel for smart overlay kit



infrared touch screen 55 inch multi ir touch frame,ir touch panel overlays with 40 points

Description for LT series infrared touch frame :



55 inch Infrared Touch Frame with 40 points

Model:LT--Q9

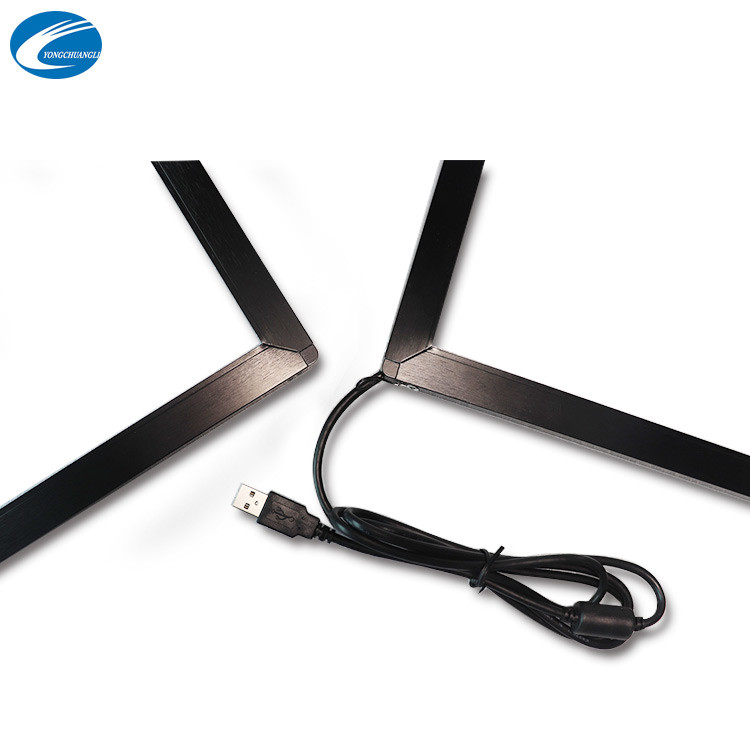

20.8mm width 9.5mm thickness frame
Infrared Touch Screen/Frame , Size from 43"-65", 40 point touch with Dust-proof/ Vandal-proof/ Water-proof/ Anit-glare


Openframe Touchscreen USB Interface 40 Points For Smart Overlay Kit 0Openframe Touchscreen USB Interface 40 Points For Smart Overlay Kit 1

Product Description
Touch Screen Size
55"
Supporting resolution
432768×32768
Minimum Recognition Point Size
2.5mm
 Touch Points
40 touch points
Touch Response Time(Multi touch)
10-15ms
Touch Response Time(One touch)
8ms
Input method
Any opaque touches, such as fingers, brushes, etc.
calibration
4 or 9 points calibration
Number of clicks
Infinite times
Touch pressure
No pressure requirement
Interface type
1.5 m USB cable receptacle, the receptacle 5P
Line length
1.5m
Frame Material
Aluminium alloy
Glass Material
Toughened glass
 communication interface
USB 2.0
Power supply mode
USB 5.0V
 Characteristic
 Easy installation, strong compatibility
 Scanning frequency
 >110Hz
Working Voltage and Current
4.75~5.25V , ≤200mA
Humidity
Up to 90% RH from 0°C to +40°C, non-condensing
Temperature Range
Working temperature:-10℃～50℃,Storage temperature:-20℃～60℃
LED Lifetime
60000hours
  ESD
EN 6100-4-2 2008:3 level.4KV contact discharge and

8KV air discharge
Anti-light Interference
Excellent
  Fault-tolerant
 Able to work if less than

10% non-consecutive sensors are damaged
Firmware Upgrade
USB Upgrade: Windows 8,Windows 7
Support OS(Multi touch)
Windows10,Windows8,Windows7,Andriod
Support OS (One touch)
WindowsXP,MacOS.Linux







Features & Functions:
1 Super-thin,and ultra-narrow frame, aluminium alloy shell
2 High definition, Stable touch, accuracy and smooth writing.
3 Well-positioned ,and support multi touch points
4 Driver-free support for multiple operating systems
5 The size can be customized
6 Long service life, maintenance-free.
7 Strong anti-jamming ability, anti-static performance of industrial ESD.
8 Response fast, sensor discontinuous damage 10%, can still work.
9 No special touch tools are needed, just opaque objects.





Main Export Markets:

  • Western Europe
  • Mid East/Africa
  • North America
  • Eastern Europe
  • Asia
  • Australasia
  • The US
  • Central/South America





Our Company



Openframe Touchscreen USB Interface 40 Points For Smart Overlay Kit 2





Key Specifications/Special Features:

55-inch IR touch frame/infrared touch frame/touch panel/infrared touch overlay
