| Place of Origin: | China |
|---|---|
| Brand Name: | YCLTOUCH |
| Certification: | RoHS, ISO 9001:2000, ce, EMC, LVD |
| Model Number: | LV-32 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Delivery Time: | 3-7 Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20000/month |
| Interface Type: | USB | Type: | Infrared |
|---|---|---|---|
| Products Status: | Stock | Size: | Customized Sizes |
| Product Name: | IR Touch Frame | Interface: | USB 2.0(full-speed) |
| Highlight: | Infrared Multi Touch Screen Overlay Kit,Multi Touch Screen Overlay Kit 32 Inch,Infrared Touch Screen Overlay 32 Inch |
||

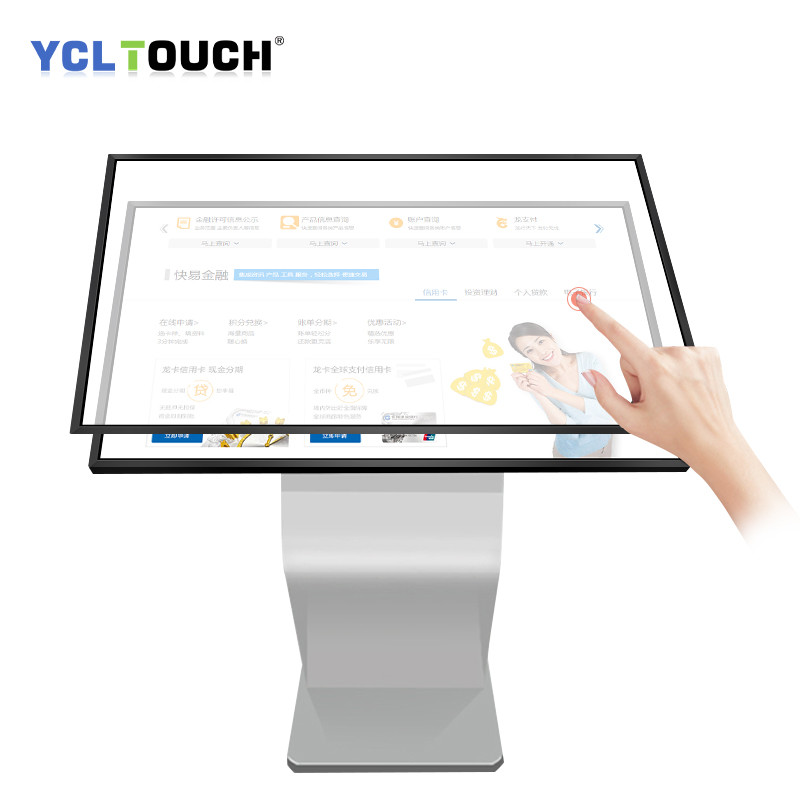

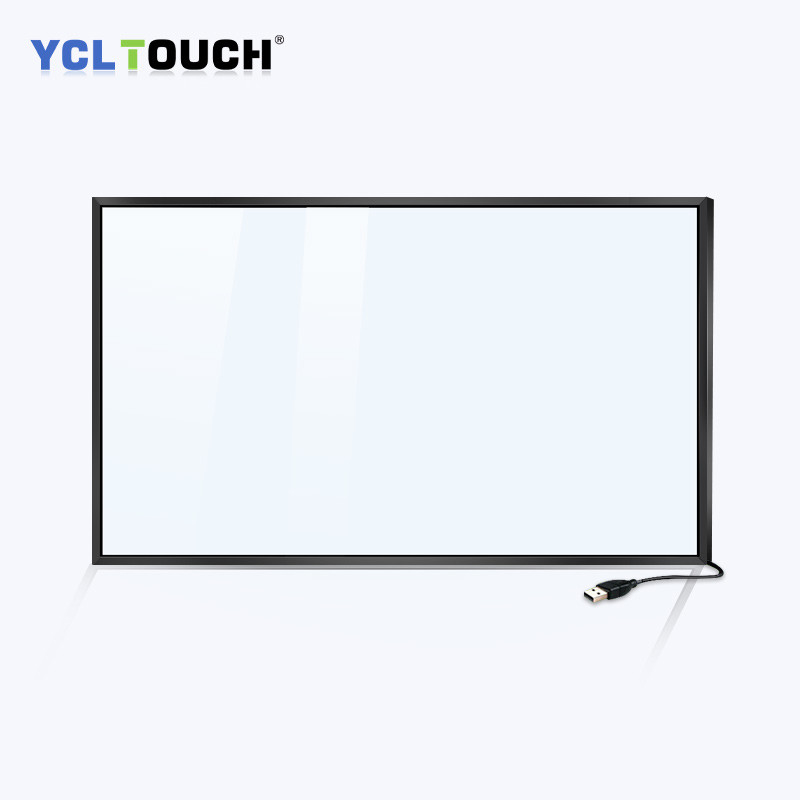

32inch Usb Multi Ir Touch Screen Frame Overlay Kit Infrared Ir Touch Frame
Touch specifications
| Item | Specification | |
| Active Area(Display Device) | 15~500 inch | |
| Housing(Only limited profile shipments) | Aluminum Alloy | |
| Housing Color(Only limited profile shipments) | Black | |
| Response Time | <15ms | |
| Frame Rate | 125Hz | |
| Touch Accuracy | ±1mm(over 90% Area) | |
| Input Method | Finger,Finger cover by glove,Opaque objects | |
| Output Form | Coordinate Value | |
| Touch Durability | Unlimited | |
| Minimum Object Sizes For Touch | Single Touch | 5mm |
| Multi Touch | 8mm | |
| Interface | USB | |
| TTL Serial Port | ||
Reliability
| Item | Specification |
| Low temperature operation | Temperature:-20ºC, time:48H |
| Low temperature start | Temperature:-20ºC, time:4H |
| Low temperature storage | Temperature:-20ºC, time:48H |
| High temperature operation test | Temperature:60ºC, time:48H |
| High temperature, high humidity operation | Temperature:60ºC, humidity:95%RH, no condensation, time:48H |
| High temperature, high humidity storage | Temperature:60ºC, humidity:95%RH, no condensation, time:48H |
| Temperature change test | Temperature:-20ºC~60ºC, Loop number:10 times, Speed:1ºC/min |
| Thermal Shock Test | High temperature:85ºC, low temperature:-45ºC,50ºC cycles |
| Packing vibration Test | Frequency:5~200H, power spectral density: 0.015G2/Hz, total RMS acceleration:1.57G, vibration mode: random vibration |
| Package drop test | A corner three side six-faces |
| ESD level | According to IEC61000-4-2 level B. Contact discharge 4 KV, air discharge 8 KV |
Electrical Specifications
| Item | Specification |
| Communication Type | USB2.0 Full Speed |
| Transmission Rate | 12Mbps |
| Power Supply | USB |
| Working Voltage | DC 5V±5% |
| Average Current | <300mA |
Storage Conditions
| Item | Specification |
| Storage Temperature | -10ºC~40ºC |
| Storage Humidity | 30%~70%RH |
| Storage Time | 12 Months |
Product Application
Packing and Delivery
FAQ
1 what can you buy from us?
Capacitance Touch Screen,Infrared Touch Screen,Interactive Whiteboard,Infrared PCBA Module
2 who are we?
We are based in Guangdong, China, start from 2013,sell to Domestic Market(00.00%),Western Europe(00.00%),Southeast Asia(00.00%),South Asia(00.00%),Mid East(00.00%),North America(00.00%). There are total about 101-200 people in our office.
3 why should you buy from us not from other suppliers?
Acquired nearly 10 domestic practical technology soft,Achieve 32-point touch,High resolution and fast response,Single-handed occlusion does not affect touch, support switching dual systems, thin border, drive-free,For Windows, Mac OS, Android, Linux.
4 how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
5 what services can we provide?
Accepted Delivery Terms: FOB,DDP；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
