| Place of Origin: | China |
|---|---|
| Brand Name: | YCLTOUCH |
| Certification: | RoHS, ISO 9001:2000, ce, EMC, LVD |
| Model Number: | LV-43 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Delivery Time: | 1-3 Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20000/month |
| Size: | 43 Inch | Size: | Customizing |
|---|---|---|---|
| Name: | IR Multi Touch Frame | Touch Screen: | IR Multi Touch Screen |
| Color: | Black | Warranty: | 12 Months |
| Response Time: | ≤10ms | Minimum Recognition Point Size: | 4mm*4mm |
| High Light: | 43 Inch IR Touch Screen Frame,IR Touch Screen Frame 20 Points,20 Point Touch Screen 4mm*4mm |
||

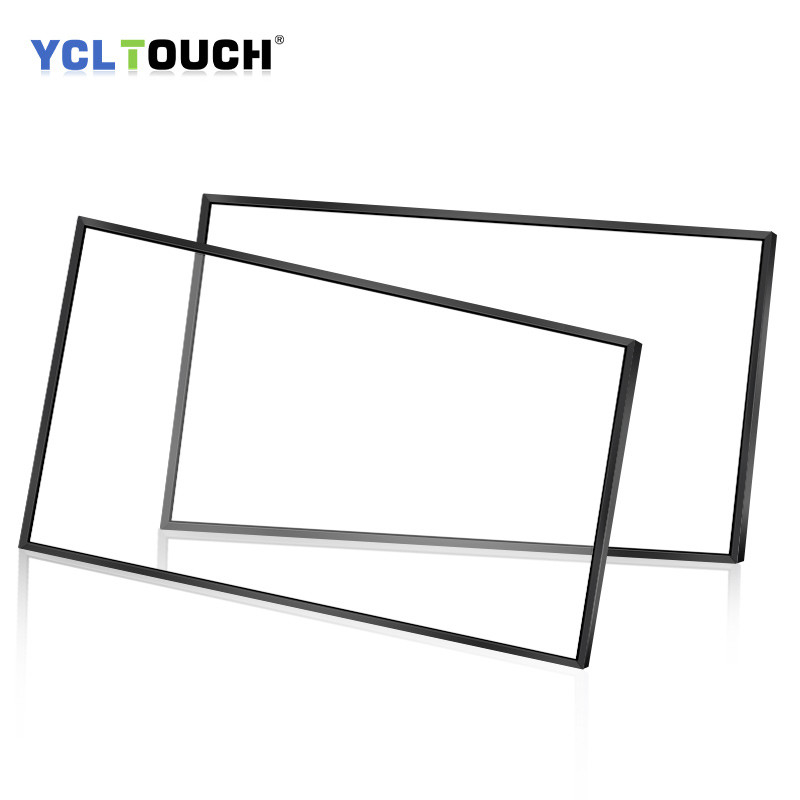

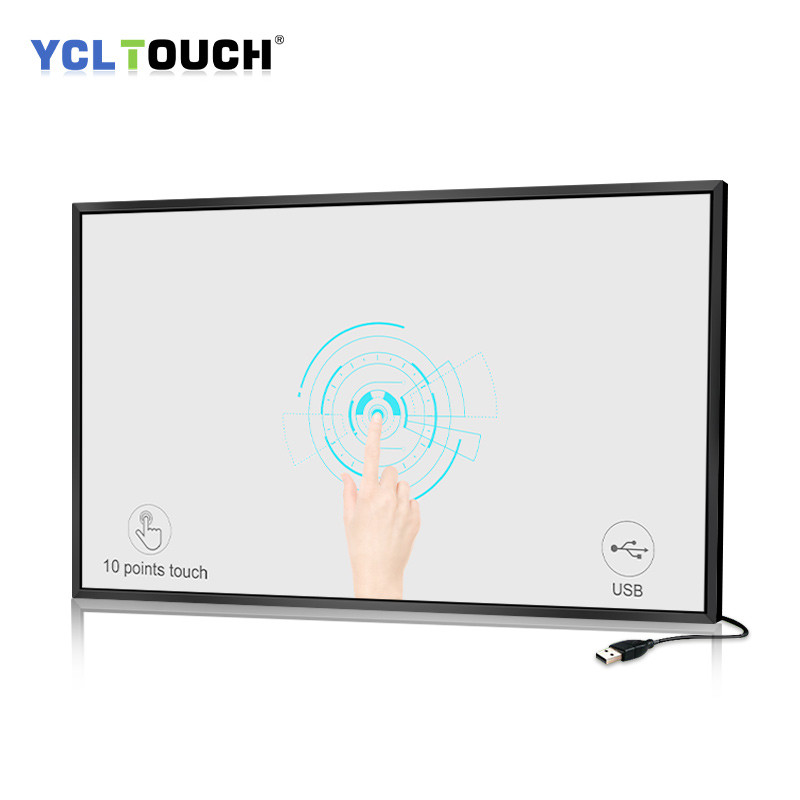

43 Inch Ir Touch Screen frame 20 Touch Points Open panel Frame Overlay Kit
IR Touch Frames
Specification
| Specification of Infrared Touch Screen | |
| Touch Screen Size | 43 |
| Touch Points | 20-point touch |
| Minimum Recognition Point Size | 4mm*4mm |
| Supporting resolution | 32768×32768 |
| Touch Response Time(Multi touch) | 10-15ms |
| Touch Response Time(One touch) | 7ms |
| Input method | Any opaque touches, such as fingers, brushes, etc. |
| Calibration | 4-point calibration |
| Number of clicks | nfinite times |
| Touch pressure | No pressure requirement |
| Interface type | 1.5 m USB cable receptacle, the receptacle 5P |
| Line length | 1.5m |
| Frame Material | Aluminium alloy |
| Glass Material | Toughened glass |
| Characteristic | Easy installation, strong compatibility |
| Scanning frequency | >110Hz |
| Power supply mode | USB 5.0V |
| communication interface | USB 2.0 |
| Working Voltage and Current | 4.75~5.25V , ≤200mA |
| Humidity | Up to 90% RH from 0°C to +40°C, non-condensing |
| Temperature Range | Working temperature:-10℃~50℃,Storage temperature:-20℃~60℃ |
| LED Lifetime | 60000hours |
| Fault-tolerant | Able to work if less than10% non-consecutive sensors are damaged |
| Anti-light Interference | Excellent |
| Firmware Upgrade | USB Upgrade: Windows 8,Windows 7 |
| ESD | EN 6100-4-2 2008:3 level.4KV contact discharge and8KV air discharge |
| Support OS( One touch) | WindowsXP,MacOS.Linux |
| Support OS (Multi touch) | Windows10,Windows8,Windows7,Andriod |
Multi-touch refers to a touch system’s ability to simultaneously detect and resolve a minimum of 2+ touch points. All 2 or more touches are detected and fully resolved resulting in a dramatically improved touch experience
Product Application
company Imformation
Shenzhen Yongchuangli Electronic Technology Co., Ltd.is a high-tech enterprise specializing in R&D, production and sales of infrared PCBA sets, touch frames, touch screens, splicing screens, interactive intelligent electronic whiteboard (projection type).Acquired nearly 10 domestic practical technology soft work, truly achieve 32 touch solution providers. The company focuses on interactive touch application, adheres to the "independent innovation technology beyond" development strategy, has a strong technical force of R&D team, and has a number of core technology solutions.
Infrared touch box, multi-touch screen and other core products have the following characteristics: high resolution, fast response, support for multi-touch operation, one-hand occlusion does not affect touch, support gesture switching dual system, the narrowest and thinnest border, drive-free support for multiple systems, suitable for Windows, Mac OS, Android, Linux operating system.
Quality products and all-round service are the basis for us to win the market. We patiently listen to every customer's suggestions and opinions, so that we continue to forge ahead, we always uphold the customer first, dedicated service!
The series of products produced by the company conform to UL, FCC, ROHS and Reach standards. The company has passed the ISO 9001:2015 international quality management system certification.
Innovation embellishes the future.
Packing and Delivery
FAQ
1 who are we?
We are based in Guangdong, China, start from 2013,sell to Domestic Market(00.00%),Western Europe(00.00%),Southeast Asia(00.00%),South Asia(00.00%),Mid East(00.00%),North America(00.00%). There are total about 101-200 people in our office.
2 how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3 what can you buy from us?
Capacitance Touch Screen,Infrared Touch Screen,Interactive Whiteboard,Infrared PCBA Module
4 why should you buy from us not from other suppliers?
Acquired nearly 10 domestic practical technology soft,Achieve 32-point touch,High resolution and fast response,Single-handed occlusion does not affect touch, support switching dual systems, thin border, drive-free,For Windows, Mac OS, Android, Linux.
5 what services can we provide?
Accepted Delivery Terms: FOB,DDP；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
