| Place of Origin: | China |
|---|---|
| Brand Name: | YCLTOUCH |
| Certification: | RoHS, ISO 9001:2000, ce, EMC, LVD |
| Model Number: | LV-37 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Delivery Time: | 3-7 Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20000/month |
| Series: | For Home & Student | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Other Name: | Infrared Touch Frame | Aspect Ratio: | 16:9 |
| Product Name: | YCLTOUCH | Style: | Any Platform |
| Size: | 37-inch | After-sales Service: | Call Center And On-line Technical Support |
37 Inch Aluminum Alloy Infrared Touch Overlay, large IR multi Touch Screen Panel kit
Specification
|
Touch Screen Size
|
37 |
|
Supporting resolution
|
32768×32768
|
|
Touch Response Time(Multi touch)
|
10-15ms
|
|
Touch Response Time(One touch)
|
7ms
|
|
Input method
|
Any opaque touches, such as fingers, brushes, etc.
|
|
calibration
|
4-point calibration
|
|
Number of clicks
|
Infinite times
|
|
Touch pressure
|
No pressure requirement
|
|
Interface type
|
1.5 m USB cable receptacle, the receptacle 5P
|
|
Glass Material |
Toughened glass |
|

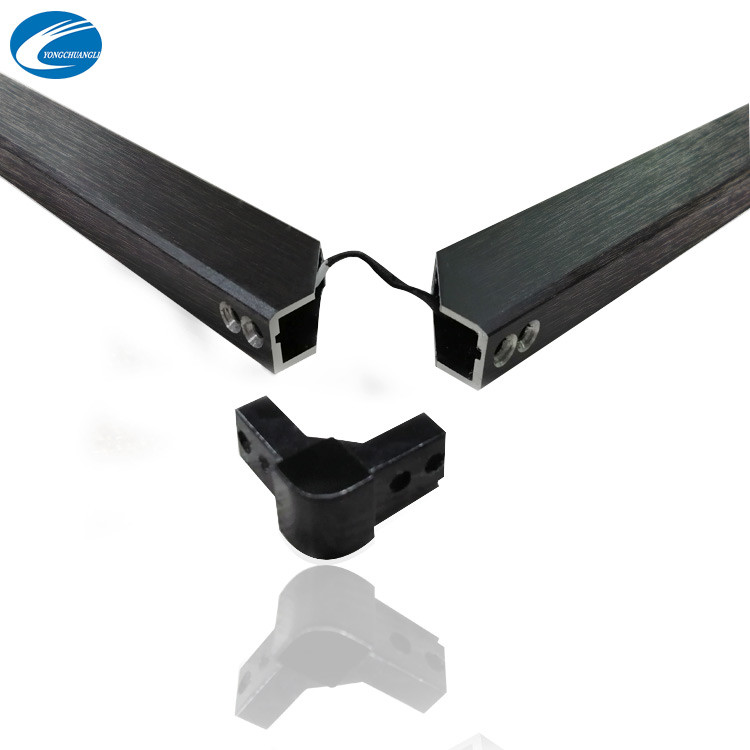

Frame Material
|
Aluminium alloy
|
|
Scanning frequency
|
>110Hz
|
|
Characteristic
|
Easy installation, strong compatibility
|
|
Power supply mode
|
USB 5.0V
|
|
communication interface
|
USB 2.0
|
|
Working Voltage and Current
|
4.75~5.25V , ≤200mA
|
|
Humidity
|
Up to 90% RH from 0°C to +40°C, non-condensing
|
|
Temperature Range
|
Working temperature:-10℃～50℃,Storage temperature:-20℃～60℃
|
|
LED Lifetime
|
60000hours
|
|
Fault-tolerant
|
Able to work if less than
10% non-consecutive sensors are damaged |
|
Firmware Upgrade
|
USB Upgrade: Windows 8,Windows 7
|
|
Anti-light Interference
|
Excellent
|
|
Support OS(Multi touch)
|
Windows10,Windows8,Windows7,Andriod
|
|
Support OS (One touch)
|
WindowsXP,MacOS.Linux
|
Infrared Touch Panel Working Principal

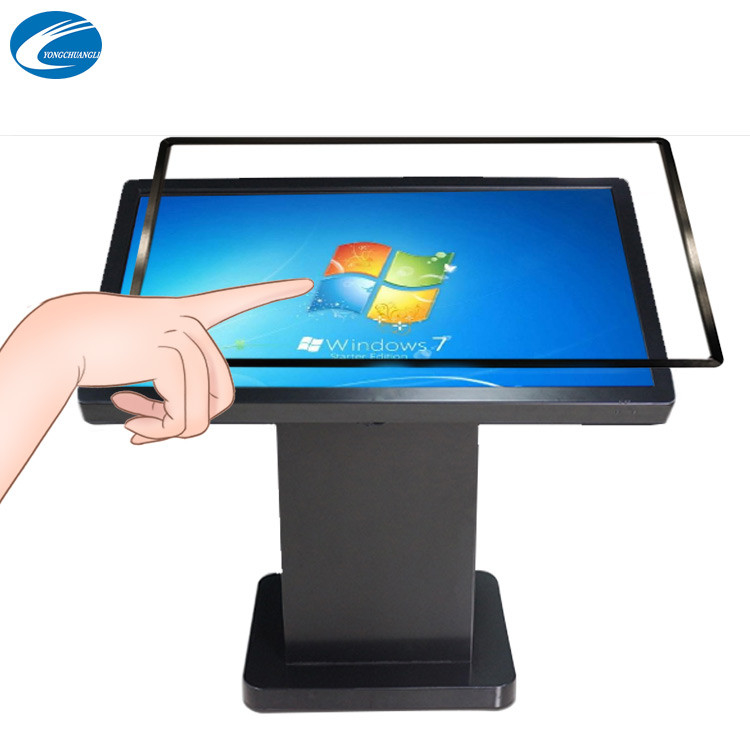

IR Touch Screen is a touch frame which is usually installed in front ofthe display screen. The frame is integrated with printed circuit board which contains a line of IR-LEDs and photo transistors hidden behind the bezel of thetouch frame. Each of IR-LEDs and photo transistors is set on the opposite sides to create a grid of invisible infrared light. The bezel shields the parts from the operation
Super advantages for 40inch IR multi touch screen :
Product Application
Packing and Delivery
Superior clarity and performance:
YCL Touch infrared touch screen uses the high quality of transparent glass so it has excellent clarity, resolution, light transmittance and reliability. Even though there are some scratches on the surface of glass,it can still work normally. The surface of the screen has no surface coating on the plastic film or moving parts, so there is no parts will wear consumption during the usage.infrared touch screen ensures stable performance without any ghost spots or drift.The operation is sensitive, through finger, glove, passive stylus and other opaque objects can perform accurate touch input. a high-precision infrared touch screen, with the resolution of 32767*32767 through interpolation algorithm, supports plug and play, and suitable for various internal and external environments.We have ROHS, CE and FCC international agency certification.
